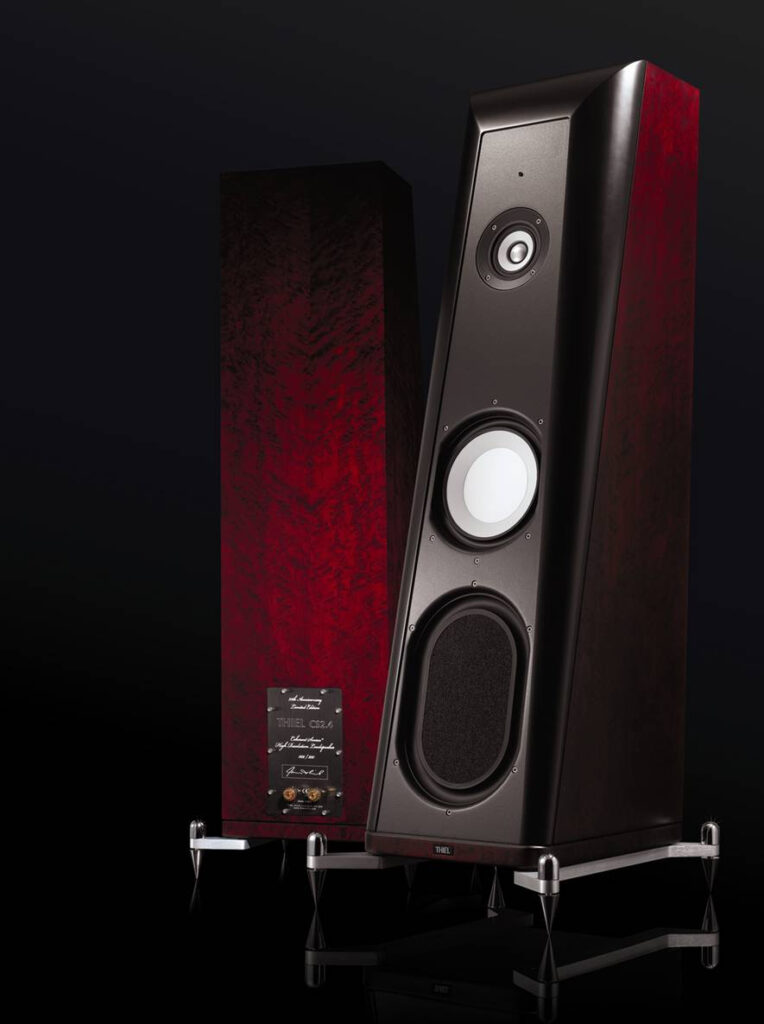

CS2.4

c. 2004-2011

MSRP $5995 /pr.

Mechanically 3-way, electrically 2-way floorstanding loudspeaker with an 8 inch bass driver and distinctive racetrack passive radiator.

An all-around revision of the already revered CS2.3

CS2.3 proved the concept worked. CS2.4 perfected it.

One of the watershed moments in THIEL’s history as a transducer developer was creation of the mechanical coaxial driver. Each of the four speaker models that employed the concept had a different version, but the one used in the CS2.4 featured the most advanced magnetic system by far. Optimized venting, lower internal resonances, and greater linearity were possible because all magnets were neodymium instead of ceramic or combinations thereof.

The bass driver also received updates although smaller to stretch bandwidth and improve cosmetics.

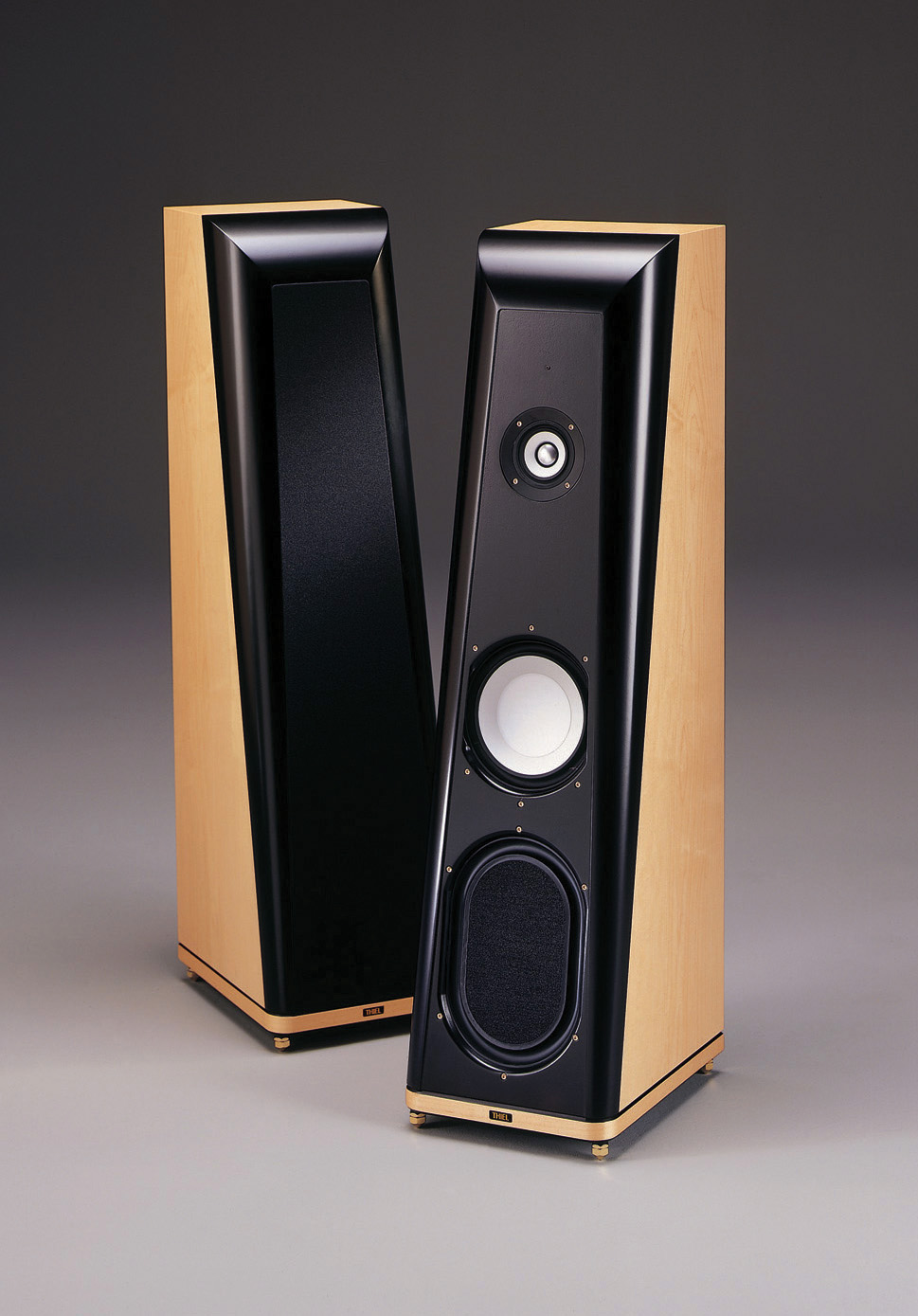

Speaking of cosmetics, CS2.4 followed the CS1.6’s industrial design language with a satin-black exposed baffle, inset magnetic grille, and solid base with four threaded inserts for included stabilizer spikes or for mounting optional outriggers.

THIEL’s habit up to this point had largely been to develop every new product from scratch yet continue to build on decades of accumulated knowledge. However, CS2.4 was surprisingly similar in concept and execution to the CS2.3. Yet, the countless iterative improvements made for a vastly superior sounding speaker with greater clarity and linearity than its predecessor. Many people consider CS2.4 to have the best sounding bass of any modern THIEL as well.

CS2.4 was just about the perfect speaker. It was expensive enough to be good, but not enough to be scary. Its size was big enough to play loudly with deep bass, but proportions were ideal and style was svelte. It was sensitive and resolving enough to be enjoyed with a wide variety of equipment.

But those who upgraded to CS2.4 from an older model surely loved the rear-mounted binding posts most of all.

CS2.4 included drivers designed and built entirely in house. Most CS2.4s had crossovers built in house, but later models had crossovers built by a contract manufacturer.

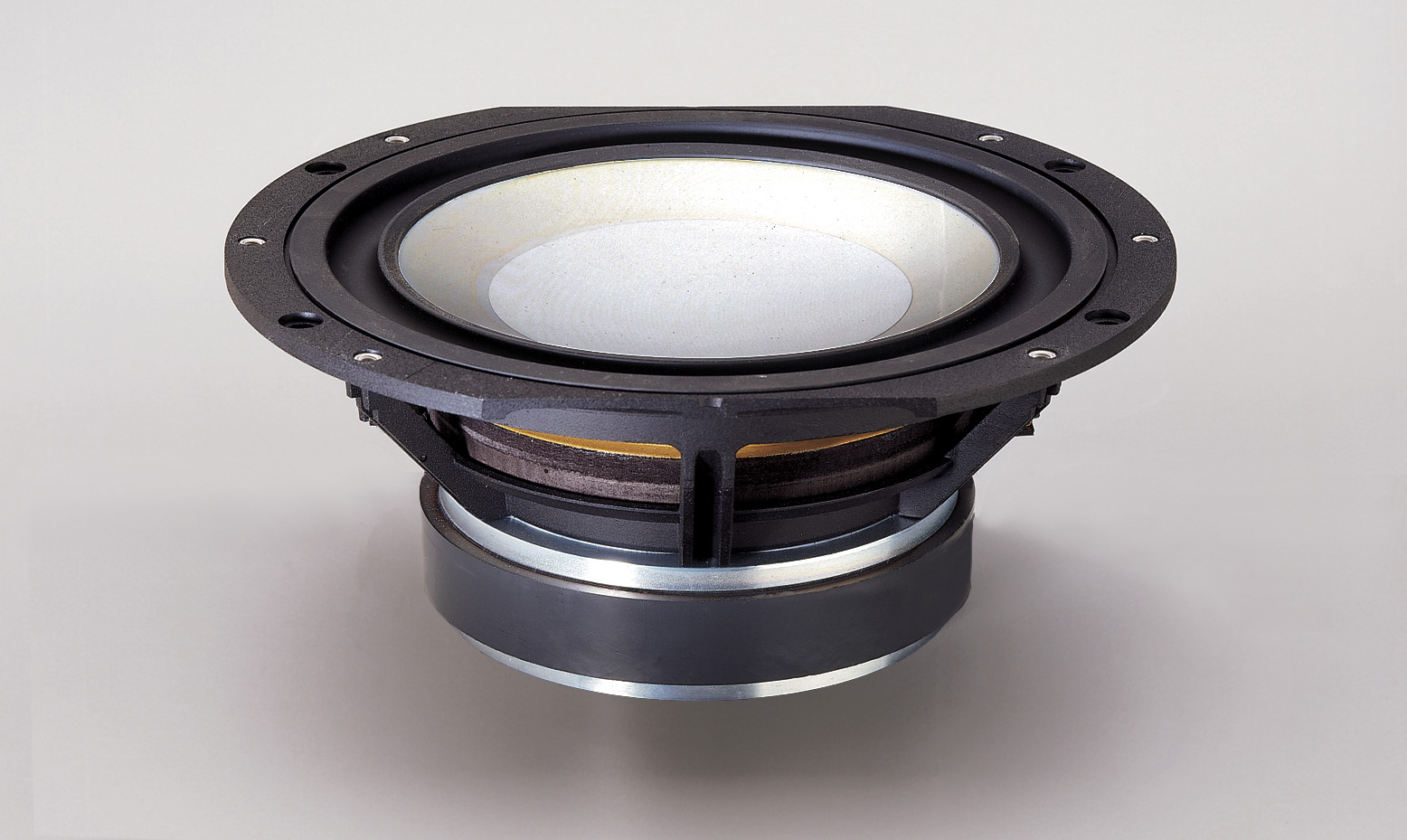

CS2.4 Woofer Details

Nominal Size: 8 inches

Chassis: Die-cast Aluminum

Diaphragm: Anodized Aluminum with inverted dust cap and edge bead

Surround: Rubber

Voice Coil: kapton and paper former, underhung

Motor: Very large 2.5 pound magnet, long gap, copper pole sleeve

Designed and manufactured by THIEL in Lexington, Kentucky USA

Photo Coming Soon

CS2.4 Coaxial Midrange/Tweeter Details

Nominal Size: 1 inch tweeter with 3.5″ midrange

Chassis: Die cast aluminum

Diaphragm: Anodized Aluminum

Surround: Fabric coupling surround between mid and tweeter, rubber outer surround

Voice Coil: 1 inch, underhung, kapton former, ferrofluid cooled

Motor: Large Nd main magnet with pole-mounted Nd focusing magnet under a copper sleeve.

Engineered by and manufactured by THIEL in Lexington, Kentucky USA. Note that while the coaxial drivers used in the CS2.3, MCS1, PCS, and CS2.4 look the same from the front, each has a different magnetic system and they are not interchangeable.

Specifications

Bandwidth (-3dB):33 Hz-37 kHz
Amplitude Response:36 Hz-25 kHz ±2 dB
Phase Response:Minimum ±10°
Sensitivity:87 dB@2.8 V-1m
Impedance:4 ohms (3.0 ohms minimum)
Recommended Power: 100-400 watts
Size:11″ W x 14″ D x 41.5″ H
Weight:70 pounds
